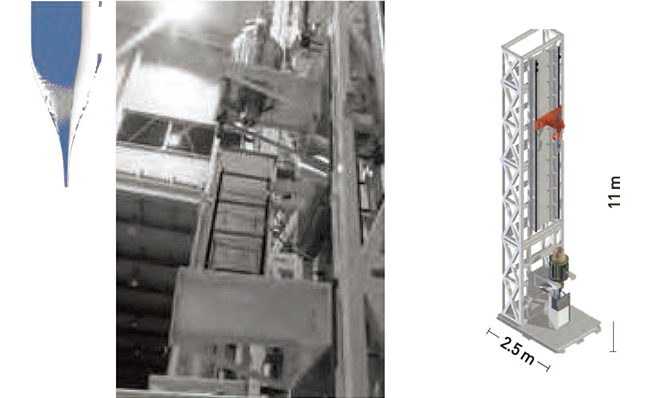

  • PREFORM SHARPING SYSTEM

    model : STM - PSH - A150

    • Sharping System

    • description

      The technology is adopted for a Sharpening System in order to save operation time before extrusion of optical fiber. The sinter-treated bottom tip of Preform will be sharpened by free fall in blob melted in the Furnace of 2200C degree high temp. A lift system is equipped at the profile of main frame to vertically transport Preform. The System consists of Transformer to supply the furnace with power, cooling water supply mechanism and air gas supply device to prevent the heater from possible damage in furnace.

      • Dimension : Body ID Ø 460 * 520
      • Furnace temp : 2,150 ℃
      • Gases : Ar , N2(max 6 bar)
      • Cooling Water : PCW(max 7 Bar)

      特征

      • High Temp Control(Stability, ±0.1℃)
      • Repeatability
      • Gas control(MFC Accuracy , 1% FS)
      • PC, PLC Auto control

    描述

    Sharping System
    Items Spec(nominal) Remarks
    Machine Dim 4m x 4m x 11m
    Machine WT 7 Ton
    Working Size 130 ~ 160 mm Length: ≤ 2500 ~ 3000mm
    Furnace Temp ≤ 2200 ℃
    Preform (WT) 70 ± 2 kg
    Cooling Water 100 lpm
    Gases Ar, N2
    Power (Total) 80 Kw
    Clean Class # 10,000 # 10,000
    Capa (Mfkm / year) 5.0
    < 返回主要产品

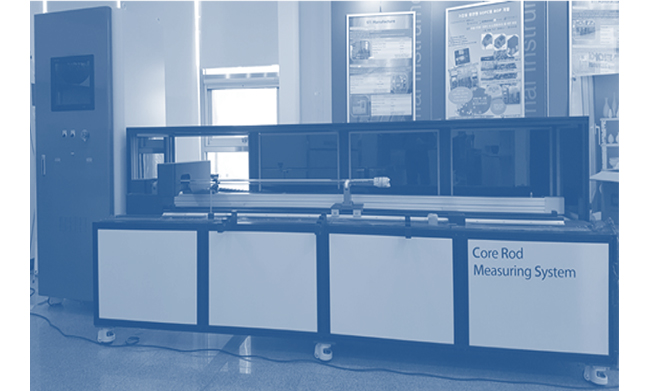

  • PREFORM MEASURING SYSTEM

    model : STM - CRMS - A150

    • preform measuring system

    • 描述

      preform measuring system
      Items Spec(nominal)
      Machine Dim 3.5m x 2m x 1.3m
      Machine WT 0.3 Ton
      Core diameter ≤ Ø 50 mm
      Core bow, ovality ≤ Ø 0.1 mm
      Capa(Mfkm/year) 6.0

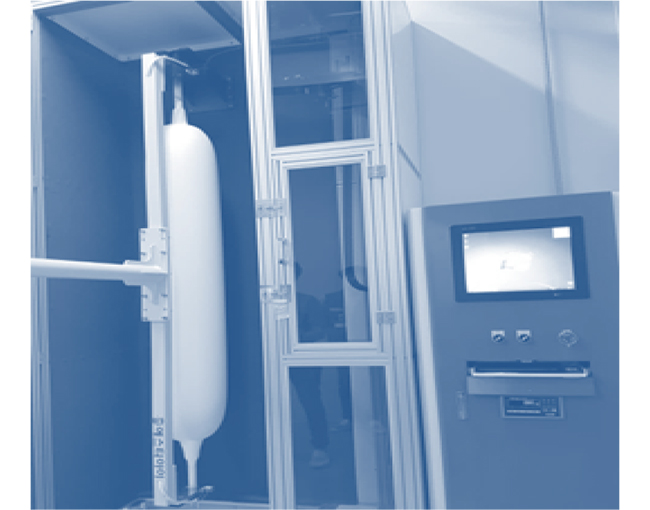

    model : STM - CMS - A150

    model : STM - LMS - A150

    • preform measuring system

    • 描述

      preform measuring system
      Items Spec(nominal)
      Machine Dim 4.5m x 2m x 2.5m
      Machine WT 0.3 Ton
      Density (g / cm3) 0.1 ~ 0.9 ± 0.01 g
      Weight (kg) Max 100 ± 0.01 Kg
      Capa (Mfkm / year) 6.0
    < 返回主要产品

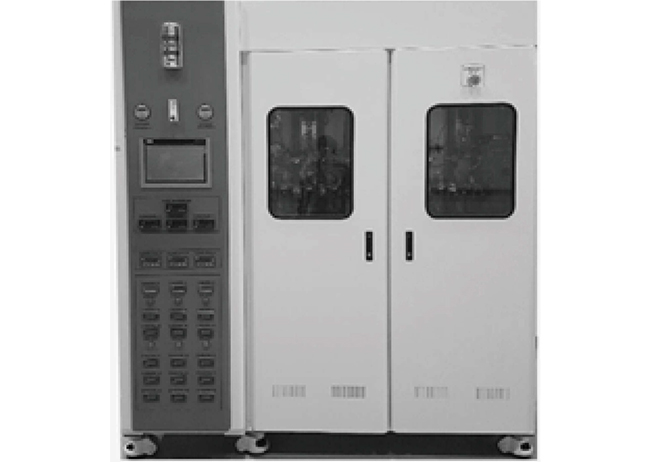

  • SICL4 VAPORIZING SYSTEM

    • sicl4 vaporizing system

    • 特征

      sicl4 vaporizing system
      Items Spec(nominal)
      Machine Dim 1.3m x 0.6m x 2.0m
      Machine WT 0.5 Ton
      Chemical SiCL4, GeCL4
      Flowrate(Max) 5-200 g/min
      P. Accuracy ≤± 3 torr

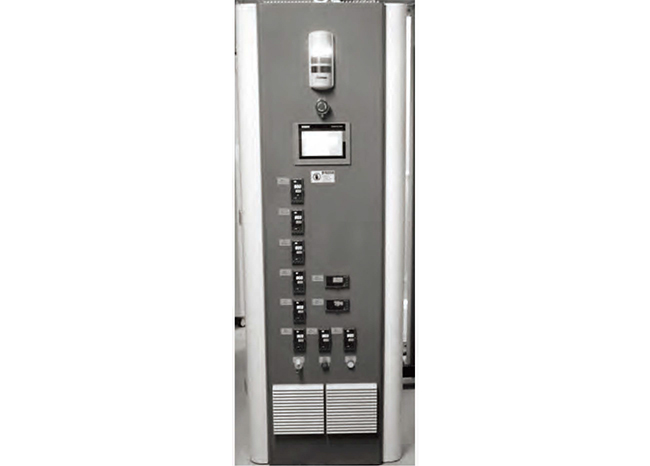

    FURNACE HEATING CONTROL SYSTEM

    • furnace heating control system

    • 特征

      furnace heating control system
      Items Spec(nominal)
      Machine Dim 1.5m x 0.6m x 2.1m
      Machine WT 0.5 Ton
      Temp Control 800 ℃ ~ 1,600 ℃
      T.Accuracy ≤± 1 ℃
      Heater Kanthal super

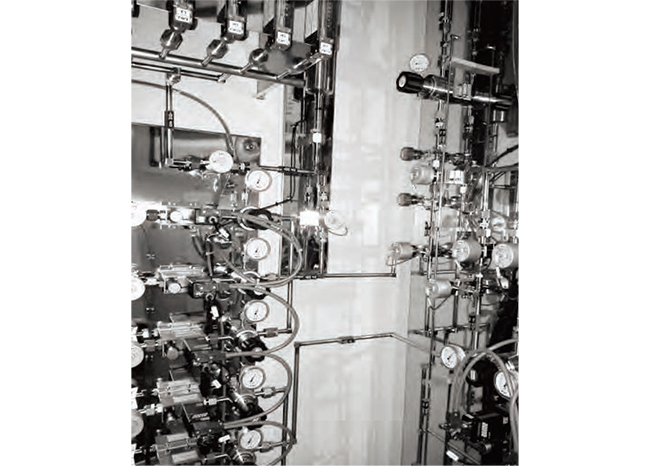

    GAS SUPPLY SYSTEM

    model : STM - LDF - A150

    • gas supply system

    • 特征

      • Eesy of operation&maintenance
      • Precision MFC Control
      • Gases : CH4, O2, N2, Air
      • Customized design for specific applications
      • Maximizes the safety of an operator

    model : STM - LDFN - A150

    • gas supply system

    • 特征

      • Easy of operation&maintenance
      • Ultra high purity : over 8N
      • Purification : N2, He, O2, Cl2
      • Customized design for specific applications
      • Maximizes the safety of an operator

    ACCESSORIES

    model : STM - WLD - A150

    accessories

    model : STM - CUT - A150

    accessories

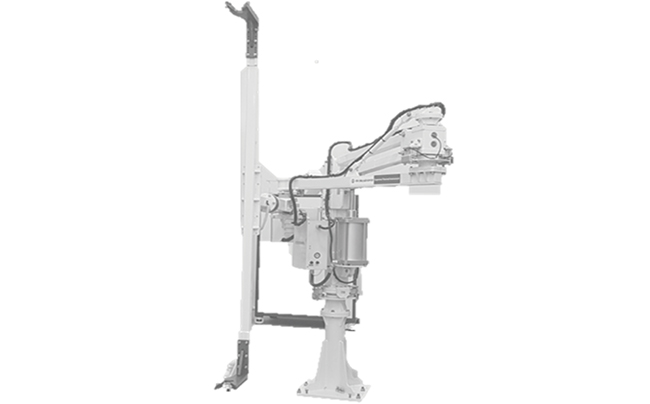

    PREFORM MOVING SYSTEM

    model : STM - PMS - A150

    preform moving system

    model : STM - PLS - A150

    preform moving system < 返回主要产品
